INTRODUCTION

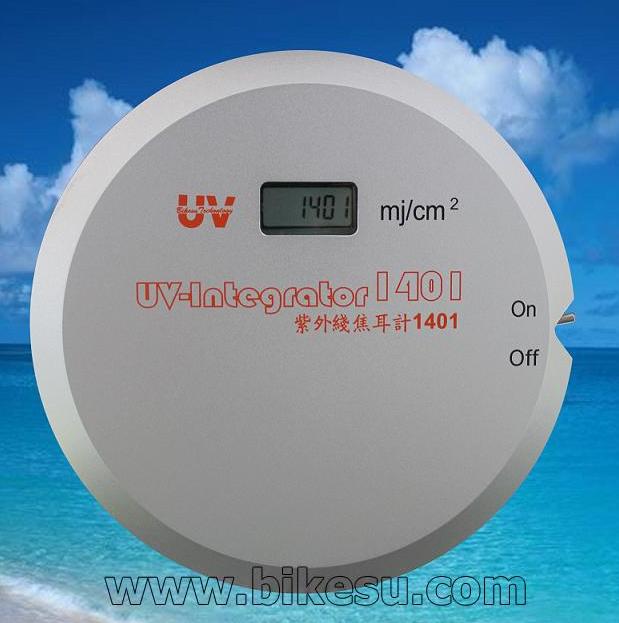

The UV-integrator1401
Size: 140 mm diameter 12 mm high Power: Lithium battery 3.6V Weight: about 450g Power consumption: about 10,000 hours (Lithiwn lithium battery) Applicable device: UV UV dryer, exposure machines and other related industries; Measuring range :0-5000mW / cm2 :0-999999mj / cm2 LCD display of energy Measuring range :250-410nm (spectral wavelength) Operating Temperature: 0 ~ 70 ℃ (the use factory temperature less than 70 ℃ temperature of 120 ° C for no more than 20 seconds in the conveyor belt) Note: UV energy UV energy is mainly used for the low purification space UV drying device equipment, Do not look directly and non-direct vision by refraction / reflection UV lamp, Any part of the body from UV lamp direct. UV drying device factory where dust, clean adequacy. Installation / operation: a. ON switch, the LCD (display) is displayed as zero. b. Joulemeter placed in the exposure lamp lights near the source, as far as possible its the back of the alignment lights source (Figure joulemeter the energy receptors in the back), for an appropriate extension of exposure time. c. Until joulemeter display measurements show, for example, 1,000 (1000mj/cm2) |
|||||||||||||||||||||||||||||||||||||
 |
 |
|
||
UV-integrator
