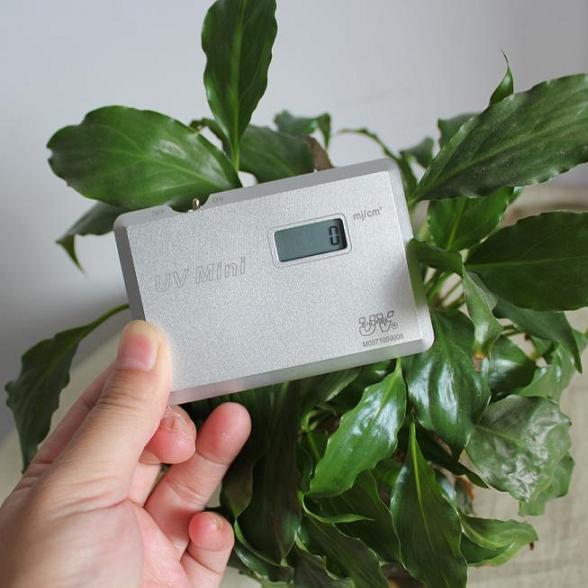

UV-MINI UV-integrator

Spectral range: UV 250-410nm (nanometers)
Intensity range: not limited
Scale range: 0-999,999 mJ/cm2 (mJ / cm ²)
Power Supply: 3.6V lithium battery
Battery life: 10,000 hours under normal operating conditions
Dimensions: 93L * 63W * 13Hmm (mm)
Weight: 150g (grams)
Ambient temperature: 0 to 45 ° C (degrees Celsius)
Withstand temperatures: 110 ° C (Celsius) under the conditions of continuous exposure to no more than 10s (seconds)
Measurement Accuracy: ± 3%
Calibration cycle: To ensure measurement accuracy and effect, it is recommended to check the cycle of one year.
Warranty period: from the date of purchase within one year from the warranty, except for man-made damage or damage caused by objective factors.

Used to measure the value of the irradiation energy of the light within a certain time, it usually the amount of light Records;
With the continuous improvement of the user requirements of UV curing UV energy meter has become extremely important in the production process of curing quality monitoring instruments, good control and to achieve consistency in the quality of the product curing an essential tool;
Measuring the spectral range of 250-410nm (nanometers) the optimum sensing UV wavelength of 365nm (nanometers);

How to use:
Switch to the open position of the energy meter above the "ON" position, the display will show a digital "0" mj/cm2 (mJ / sq cm).
Ready to measure, and the back surface of the energy meter for the ultraviolet rays of the UV light source, in order to guarantee the effectiveness and accuracy of the measurement, the photosensitive window clearly identified.
When the instrument has been recorded after a certain time of the irradiation of the light sensed by the UV light energy, can be read from the front of the display screen of the instrument on energy value, corresponding to the energy value of the unit is: mj/cm2 (millijoules / square centimeter).
Each time, during the time when the new measurement work, according to the need to meter off and then on again. Non-professionals, should not open the instrument to adjust or destruction, so that will affect the effectiveness and accuracy of the instrument's detection.
