ETA-0832 Coating Thickness Gauge

I. Introduction

The instrument uses a magnetic and eddy current thickness measurement method, non-destructive measurement of the non-magnetic coating layer thickness ( such as aluminum , chromium, copper , enamel , rubber magnetic metal substrates ( such as steel , iron, alloy and hard magnetic steel, etc. ) , paint, etc. ) and non-magnetic metal matrix ( such as copper , aluminum, zinc , tin, etc. ) on a non -conductive cover layer thickness (e.g., enamel, rubber , paint , plastics, etc. ) . This instrument has a measurement error is small , high reliability, good stability, simple operation , is essential to ensure product quality control and testing equipment , widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and testing fields.

Second, the instrument features

∵ compact design, easy to carry

∵ whole intelligent design, simple operation

∵ rapid, reproducible

∵ zero calibration , two-point calibration

∵ LCD digital display

∵ metric / imperial unit conversion

Process ∵ has beep alerts

∵ with automatic shutdown

Third, the technical parameters

∵ measuring range :0-1000UM

∵ Accuracy: zero calibration , ± (3% H ± 1.5); two-point calibration ; ± [(1% ~ 3%)] H ± 1.5

∵ Display Accuracy : 0.1 (<100UM) 1UM (> 100UM)

∵ ambient temperature :0-40 ℃

∵ Relative humidity : ≤ 85%

∵ minimum base : 10 * 10 mm

∵ minimum curvature : Convex 5mm; concave 25mm

∵ thinnest substrate : 0.5mm

∵ Weight : 98G

∵ Size : 102 × 66 × 24mm

Fourth, service : This instrument one year free warranty and lifetime maintenance.

**********************************************************************************************************

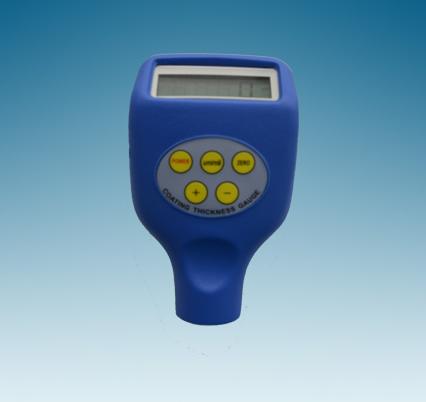

ETA-083NF coating thickness

I. Introduction

   The instrument uses the eddy current thickness measurement method, non-destructive measurement of non-magnetic metal substrates ( such as copper , aluminum, zinc , tin, etc. ) thickness ( such as enamel , rubber , paint, plastic, etc. ) non -conductive coating . This instrument has a measurement error is small , high reliability, good stability, simple operation , is essential to ensure product quality control and testing equipment , widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and testing fields.

Second, the instrument features

  ∵ compact design, easy to carry

  ∵ whole intelligent design, simple operation

  ∵ rapid, reproducible

  ∵ zero calibration , two-point calibration

  ∵ LCD digital display

  ∵ metric / imperial unit conversion

  Process ∵ has beep alerts

  ∵ with automatic shutdown

Third, the technical parameters

∵ measuring range :0-1000UM

∵ Accuracy: zero calibration , ± (3% H ± 1.5); two-point calibration ; ± [(1% ~ 3%)] H ± 1.5

∵ Display Accuracy : 0.1 (<100UM) 1UM (> 100UM)

∵ ambient temperature :0-40 ℃

∵ Relative humidity : ≤ 85%

∵ minimum base : 10 * 10 mm

∵ minimum curvature : Convex 5mm; concave 25mm

∵ thinnest substrate : 0.5mm

∵ Weight : 98G

∵ Size : 102 × 66 × 24mm

Fourth, service : This instrument one year free warranty and lifetime maintenance.
