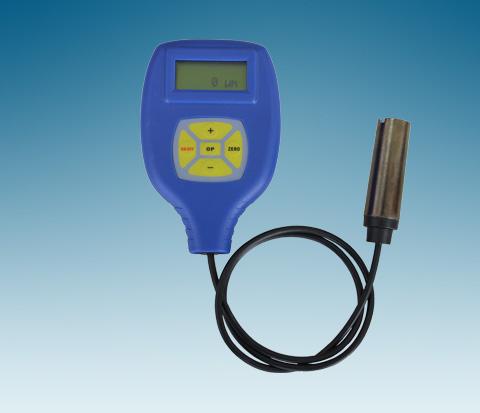

ETA-068NF

I. Introduction

The instrument uses the eddy current thickness measurement method, non-destructive measurement of non-magnetic metal substrates ( such as copper , aluminum, zinc , tin, etc. ) thickness ( such as enamel , rubber , paint, plastic, etc. ) non -conductive coating . This instrument has a measurement error is small , high reliability, good stability, easy operation , etc., is essential to ensure product quality control and testing equipment , widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and testing in the field .

Second, the instrument features

  ∵ compact design, easy to carry

  ∵ whole intelligent design, simple operation

  ∵ rapid, reproducible

  ∵ zero calibration , two-point calibration

  ∵ LCD digital display

  ∵ metric / imperial unit conversion

  Process ∵ has beep alerts

  ∵ two probes designed for detection of different places

  ∵ with automatic shutdown

  ∵ iron base with various non-ferrous materials , automatic identification

Third, the technical parameters

∵ measuring range :0-1000um

∵ Accuracy: zero calibration , ± (3% H ± 1.5); two-point calibration ; ± [(1% ~ 3%)] H ± 1.5

∵ Display Accuracy : 0.1 (<100um) 1um (> 100um)

∵ ambient temperature :0-40 ℃

∵ Relative humidity : ≤ 85%

∵ minimum base : 10 * 10 mm

∵ minimum curvature : Convex 5mm; concave 25mm

∵ thinnest substrate : 0.5mm

Fourth, service : This instrument one year free warranty and lifetime maintenance.
