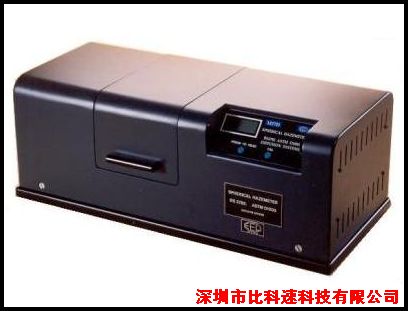

EEL-57D Hazemeter

EEL 57D hazemeter measurement of transparent and translucent material, such as plastic sheets, films, glass and the haze of a solution and the transmittance. Its unique optical design to meet the testing requirements of various industries on the size of the sample. EEL 57D hazemeter 0o irradiation / diffusing observation optical structure can be accurately measured haze, total transmittance and scattering transmittance. The measurement samples quick and easy, you can hand-held sample measurement or the sample directly on the specimen measuring port measurements. As 90mm the spacing between the light source and detector, so the thickness of the sample is not a problem.

Technical parameters:
Sample size: because of its unique design, the light source and detector between a pitch of 90mm. Meet the testing requirements of a wide range of sample;
Sample hole: transmission: 22mm diameter
The lighting hole: transmission: l5mm diameter
Geometric structure: 0o / d (0o irradiation is diffuse observation); meet ASTM D1003 and BS2782 standards
Traceability: traceable to the National Physical Laboratory NPL (UK)
Spectral response: CIE specified light source spectral function of A and C
Reproducibility: 0.1 units
Inter-instrument agreement: 0.3 units
Warm-up time: 1 minute
Zero drift:
Within five minutes after the total scale drift: Preheat less than 0.l unit
Operating temperature: 5 to 50 ℃
Storage temperature:-l0 to 65 ℃
Items: 232; measuring the haze of a solution, the transmittance of the cuvette, and resistance to Taber Friction Test Sample holder
Power supply: 110-230VAC 50-60HZ
High degree: 200mm
Width: 530mm
Depth: 240mm
Weight: 12kg
Shipping Weight: 14kg

The British diffusion systems EEL 57D fog meter
Simple operation: read data directly and quickly Optical
Wide adaptability: suitable for laboratory or production workshop optical
Geometry: 0o irradiation / diffusing observations
Free from any outside interference of light: the sample chamber to light good airtight
