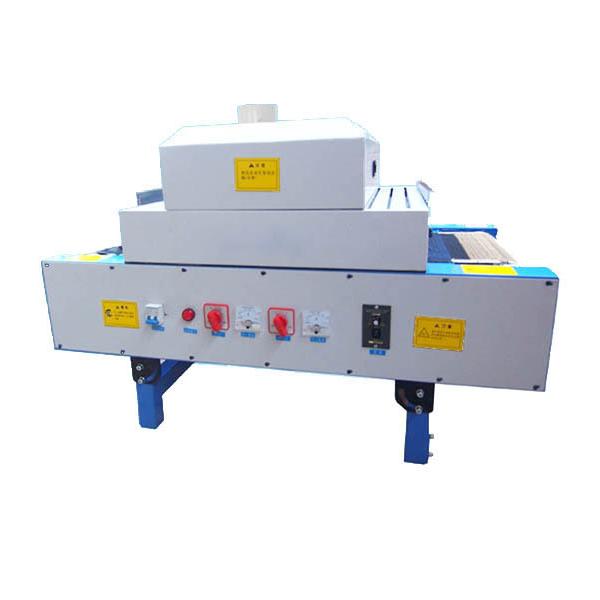

UV-400 UV curing machine

Applications:
This is a transfer UV curing device, widely used in mobile phone shell, membrane switch, Electronic plastic housing UV surface paint coating; signage printing UV ink curing; for curing electronic components, liquid crystal film, terminal rubber seal phone component adhesive, plastic component adhesive and LCD; the device is small, light weight, well-made, easy to move.

Technical parameters:
1, Dimensions: 1500 × 660 × 1000mm (L × W × H);
2, feed length: 250 mm;
3, the material length: 250 mm;
4, feed height: 540 ± 100mm;
5, feed port height: 80mm;
6, the net width: 400mm;
Belt material: Teflon;
8, the lamp power: 3KW / 2 sticks, lamp irradiation highly manual adjustment;
9, peak: 365nm;
10, lamp irradiation width: 400mm;
11, the transfer of motor: 25W 1:20;
12, cooling fan: 7 units;
13, the transfer speed :0-20m / min, and electronic speed;
14 decorative forms: spray;
15, the total power: 6.2KW;
16, power supply: 380V;
