INTRODUCTION
Applications:
This machine is widely used in watches, watch Case curing; UV adhesive, electronic components, LCD, terminal plastic closure, cell phone components adhesive the plastic component adhesive and LCD; The device is small, light weight, production well. Technical parameters: 1, Dimensions: 500 × 470 × 586mm (L × W × H); 2, lamp power: 400W / only; 3, box height: 360 ± 10mm; 4, the box width: 400 ± 10mm; 5, box length: 450 ± 10mm; 6, the effective luminous length: 150mm; 7, exhaust fan: 24W / 2 units; 8, UV illumination: 40W/cm; 9 decorative forms: spray; 10, power supply: single-phase 220V. |
|||||||||||||||||||||||||||||||||||||
 |
 |
|
||

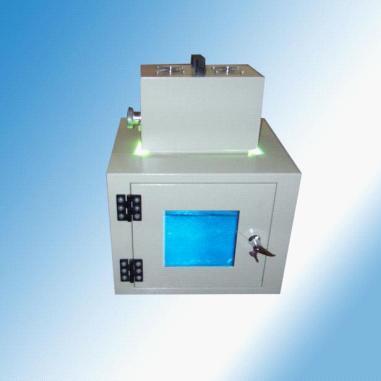

UV-integrator
