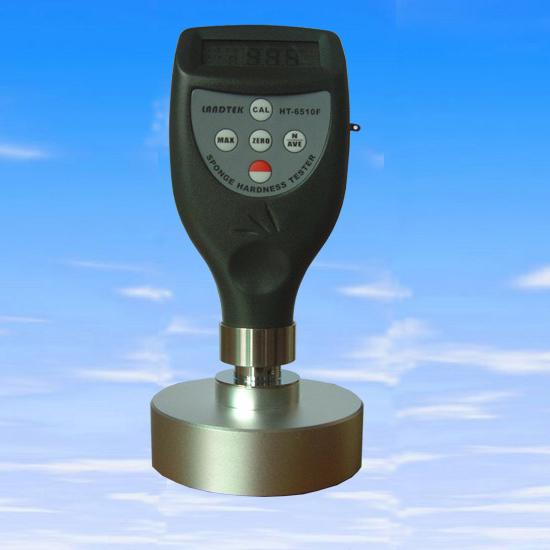

Durometer Type F is an exclusive design for testing soft cellular materials. The large diameter presser foot and cylindrical indentor configuration allow measurement by direct application to the test specimen.



Display：4 digits, 10 mm LCD

Range：0~100

Resolution：  0.1

Presser foot: 80mm diameter

Indenter: Extension 2.54mm                25.2mm Cylinder

Spring force: 455gf

Measurement deviation: ≤ ±1

Power supply: 4x1.5v AA (UM-3) battery

Operating condition: Temp. 0~50℃              Humidity <80%

Size：162x65x28mm (6.4x2.6x1.1inch)

Weight：about  490g   （not including batteries）

PC interface: RS232C interface

Power off :  2 modes

               Manual off at any time by depressing the power key till OFF shows on the display or Auto power off after 2 minutes from last key operation .

Accessories：      Carrying case  1 pc.       Operation manual   1 pc.
